# Gateway

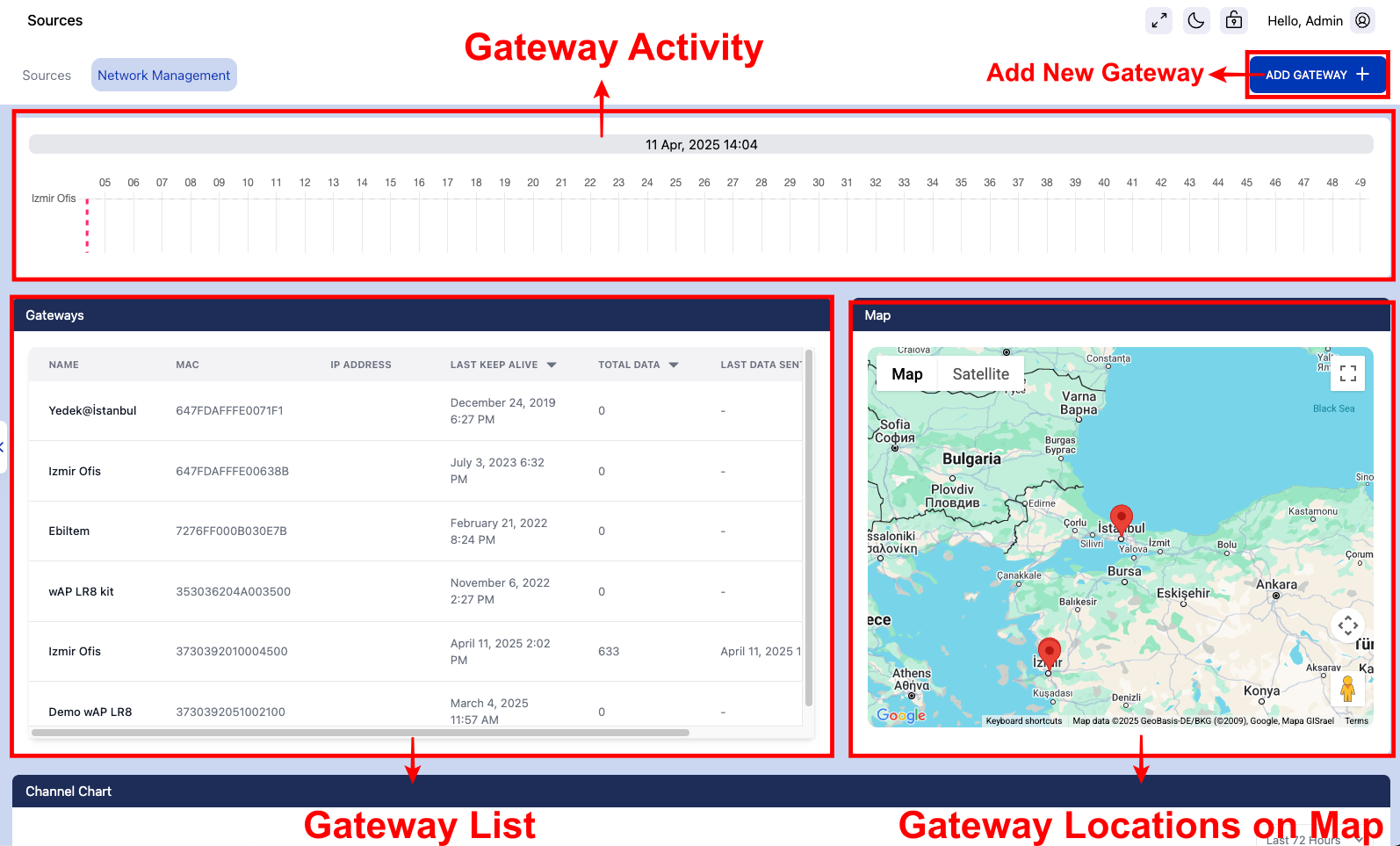

<figure><img src="https://803875272-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGOLnOOPZHTcQBNC5GI%2Fuploads%2FRbXTFJAifkiwbJXd4v74%2Fimage.png?alt=media&#x26;token=ed2f6ca8-9b42-4987-b13a-6d8c512e910f" alt=""><figcaption></figcaption></figure>

* Gateway Activity help to virtualize timeline of gateway package traffic over time.
* A google map that help to display geographic location of gateways&#x20;

#### Gateway List

<figure><img src="https://803875272-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGOLnOOPZHTcQBNC5GI%2Fuploads%2FuaQWYxA1jU5Zw26BBqfw%2Fgateway_list.png?alt=media&#x26;token=bbe1b57d-d820-48db-93a3-e3f13e3b41b8" alt=""><figcaption><p>Gateway List</p></figcaption></figure>

* **Name:** The user-assigned, descriptive name of each gateway (e.g., "Yedek\@Istanbul").
* MAC: A Unique identifier, used for LoRaWAN network
* IP Address: An IP address, shows last LoRaWAN network connection
* Last Keep Alive: A time that last connection made by gateway onto LoRaWAN network
* Total Data: Count of last receive data packages
* Last Data Send Time: Last data package receive time
* Edit/Delete Gateway: Helps to edit gateway details or remove from LoRaWAN network.

#### Add Gateway

Before connecting a LoRaWAN gateway to Skysens, ensure it supports LoRaWAN and set its LNS URL to Skysens' address, which enables data communication. Please refer to [support ](https://docs.skysens.io/support/custom-software-engineering-and-integration-support)page for more information.

Adding a new gateway  you need to fill information on menu.

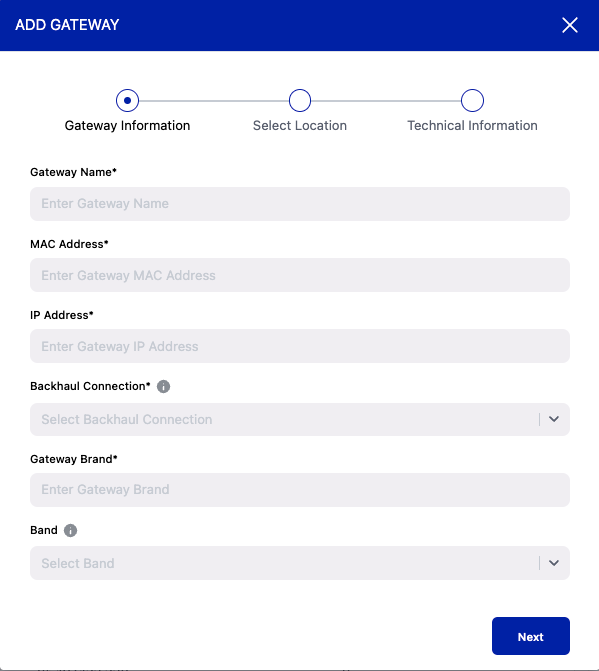

<figure><img src="https://803875272-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGOLnOOPZHTcQBNC5GI%2Fuploads%2FjLIEk2GqmYO1Q4v0AgO1%2Fimage.png?alt=media&#x26;token=219bf842-92fd-4f0d-80a7-879139d18b14" alt=""><figcaption><p>Gateway Add Menu 1</p></figcaption></figure>

* Gateway Name: Write a decriptime name for your gateway
* MAC Address: The unique intentifier can be found on configuration file or a sticker on the gateway.
* Backhaul Connection: Select a type of connection that gateway connect with, such as "LAN", "GSM" etc..
* Band: Select the correct band for your region and gateway; Skysens LNS currently supports European(EU868) and US(US915) bands.

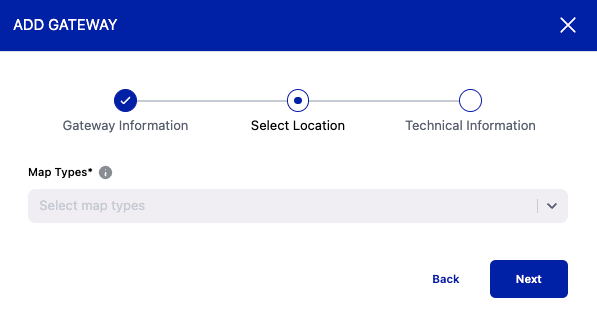

<figure><img src="https://803875272-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGOLnOOPZHTcQBNC5GI%2Fuploads%2FLUX378YSUToBlcDnEcqm%2Fimage.png?alt=media&#x26;token=063db4b6-f05a-4814-9c34-fc7ec73144a7" alt=""><figcaption><p>Gateway Add Menu 2</p></figcaption></figure>

* Map Types: Select a map type that track to your location of gateway. You can select a google map option or upload a floor plan and map the location of gateway.

<figure><img src="https://803875272-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGOLnOOPZHTcQBNC5GI%2Fuploads%2FtENWdVRRpGl7olbnooKA%2Fimage.png?alt=media&#x26;token=296fdf3c-7876-4b22-ad92-ba957a0f8fcd" alt=""><figcaption><p>Gateway Add Menu 3</p></figcaption></figure>

* Select Users or User Groups from list if you want a notification about gateway when it went offline.
* You can also add some note or images about installation of gateway.
